M12 FGG And PHG Cable To Cable Connectors , Round Push Pull Connector

Name: M12 FGG And PHG Cable To Cable Connectors Round Push Pull Connector
Brand: MOCO
Price: 1 USD

Buy cheap M12 FGG And PHG Cable To Cable Connectors , Round Push Pull Connector product

Brand Name : MOCO

Model Number : FGG PHG

Certification : UL/CE/RoHs/ISO9001

Place of Origin : Shezhen, China

MOQ : 10pcs

Payment Terms : T/T, Paypal, , Western Union

Supply Ability : 200000pcs/month

Delivery Time : 7-10 working days after simple confirmation

Packaging Details : Each connector in a PE bag. every 50 or 100 pcs of connectors in a small box (size:20cm*15cm*6cm), every 6 small boxes in a carton(size:30cm*20cm*20cm)

Product name : M12 FGG and PHG cable to cable circular push pull connectors

number of pin : 2- 16 pin

gender : male & female

insulator material : PPS

Vibration : 15 g [10 Hz - 2000 Hz]

Shock Resistance : 100 g [ 6 ms]

Contact Now

M12 FGG and PHG cable to cable circular push pull connectors

Description

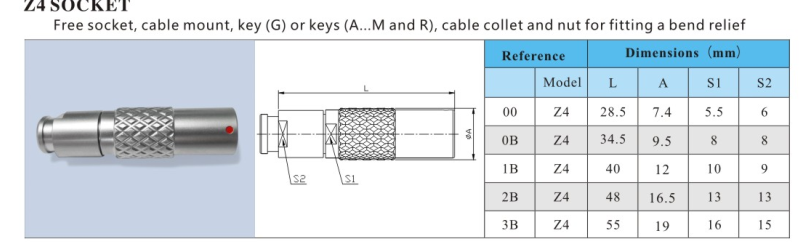

T1 plug is a standard straight plug and also a classical male circular connector. You can pick the right size you want according to your panel cut-outs and other parameters. T1 plug widely used in many area like medical, audio - video and so on. Z4is a free socket, cable mount, and nut for fitting a bend relief.

Main features:

- Security of the push-pull self-latching system;

- Solder or print contacts(straight or elbow);

- Keying system for connector alignment;

- 360°screening for full EMC shielding;

- UL certificated

Dimensions and Parameters

M12 FGG And PHG Cable To Cable Connectors , Round Push Pull Connector

MOCO P / N	1BT1 1BZ4
Insert	2-16 low voltage
Endurance (Shell)	5000 mating cycles
Temp (min)	-40 deg
Temp (max)	200 deg C
Humidity (max)	<=95% [at 60 deg C / 140 F]
Vibration	15 g [10 Hz - 2000 Hz]
Shock Resistance	100 g [ 6 ms]
Salt Spray Corrosion	>144 hr
IP Rating	50
Shielding (min)	75 dB (10 MHz)
P op (max)	60 bar (870 psi)

We also provide cable assembly service!

If you have any interests, please feel free to contact us!

Contact us today, we are looking forward to serving you!
